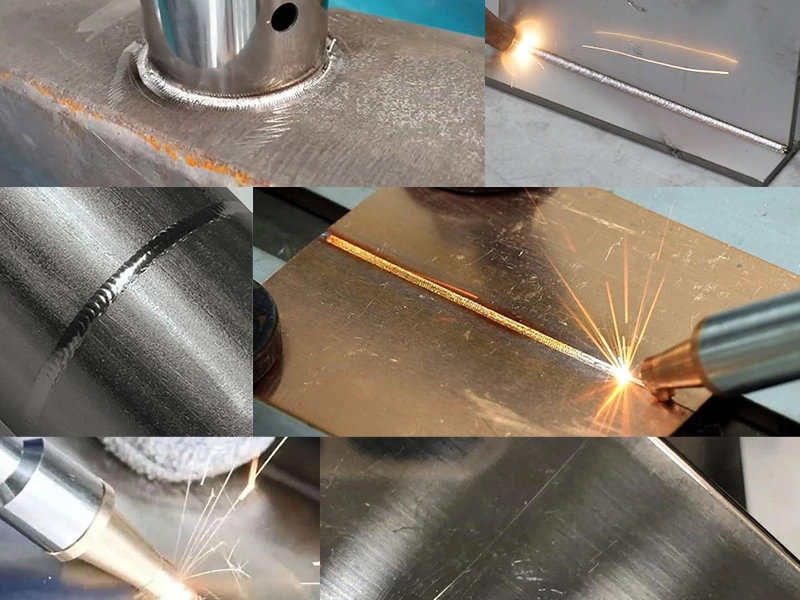

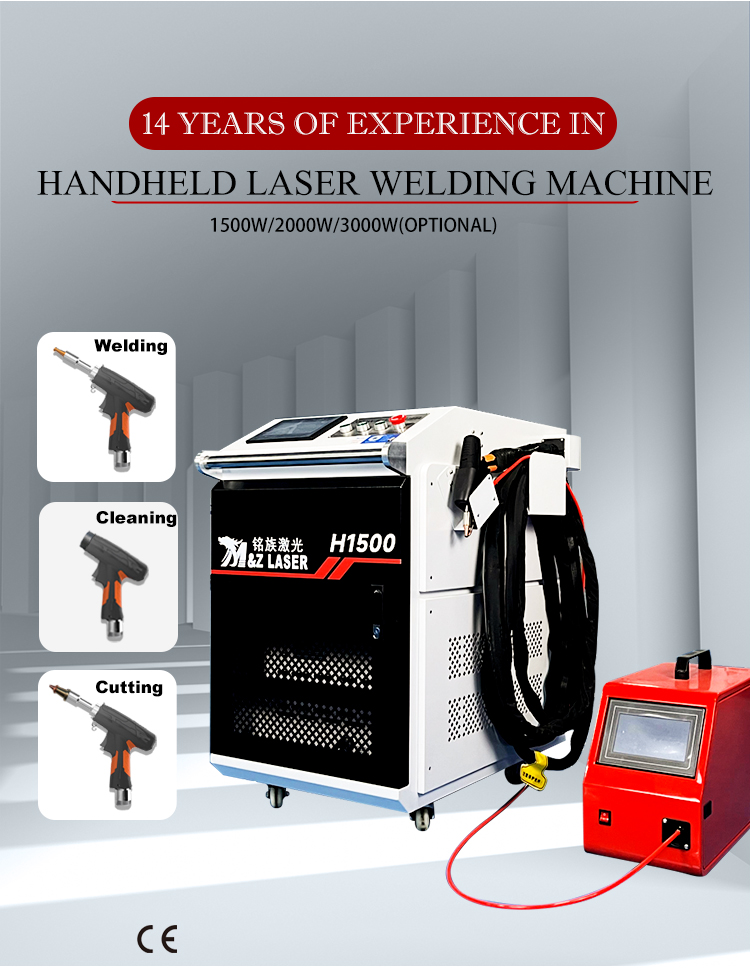

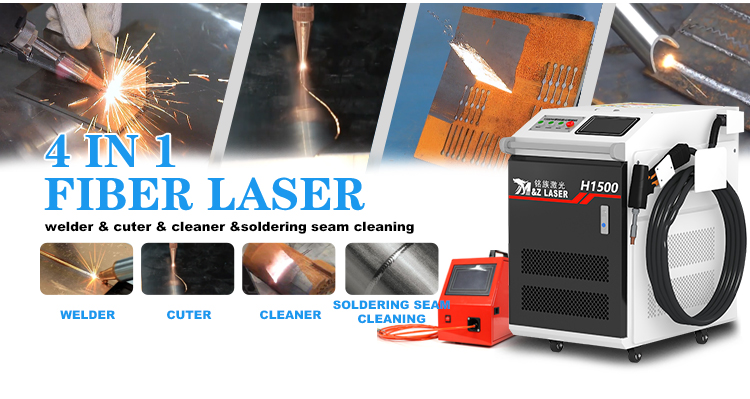

1500W Handheld laser welding machine 4 in 1 multifuction laser welders for metals, it has welding,cutting, cleaning, and rust removal cleaning functions in one machine.Handheld laser welding machine is widely used for carbon steel, stainless steel, alumimum brass and other metals....
Product Descriptions
handheld laser welder 1500w 4 in 1 fiber laser welding cleaning cutting machine

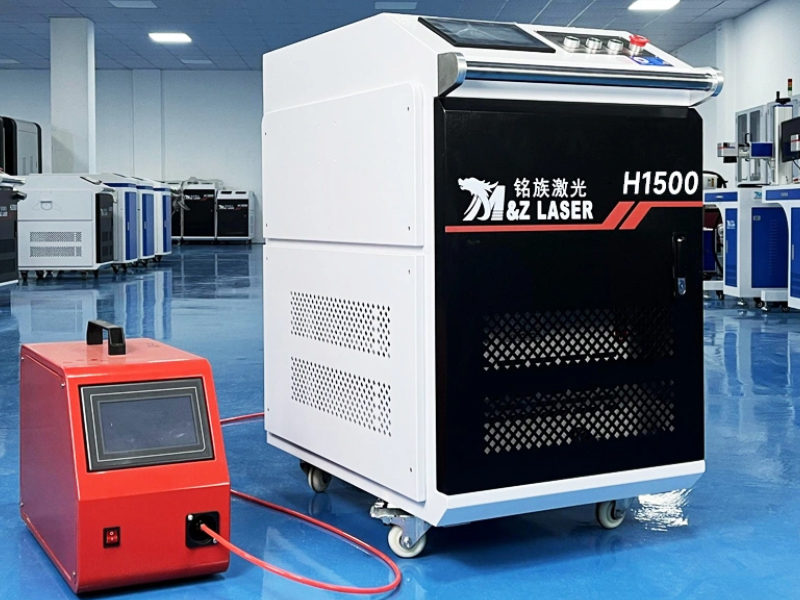

Introduction of 1500W handheld laser welding machine
The 1500W Handheld Laser Welding Machine is a state-of-the-art welding solution designed for efficient and precise welding of various metal materials. This advanced device combines high power output with user-friendly design, making it an ideal choice for a wide range of industrial applications.
Key Features of handheld laser welding machine:
-
High Power Output: With a maximum output power of 1500W, this machine can handle a variety of welding tasks, from thin sheets to thicker metal components.
-
Versatile Material Compatibility: It supports welding of carbon steel, stainless steel, and galvanized sheets, making it suitable for use in automotive, construction, and manufacturing industries.
-
Flexible Operation: The handheld design allows for easy maneuverability and access to hard-to-reach areas, enabling precise welding even in complex geometries.
-
Precise Control: Equipped with advanced control software (e.g., HENC4.0), the machine offers precise control over welding parameters such as power, speed, and pulse width.
-
Low Heat Input: The laser welding process minimizes heat input, reducing thermal distortion and ensuring minimal material deformation.
-
Energy Efficiency: The continuous wave (CW) laser mode provides high energy efficiency, typically around 30%, which is significantly higher than traditional welding methods.
-
User-Friendly Interface: The intuitive control panel and simple operation make it easy for operators to achieve professional results, even without extensive training.
-

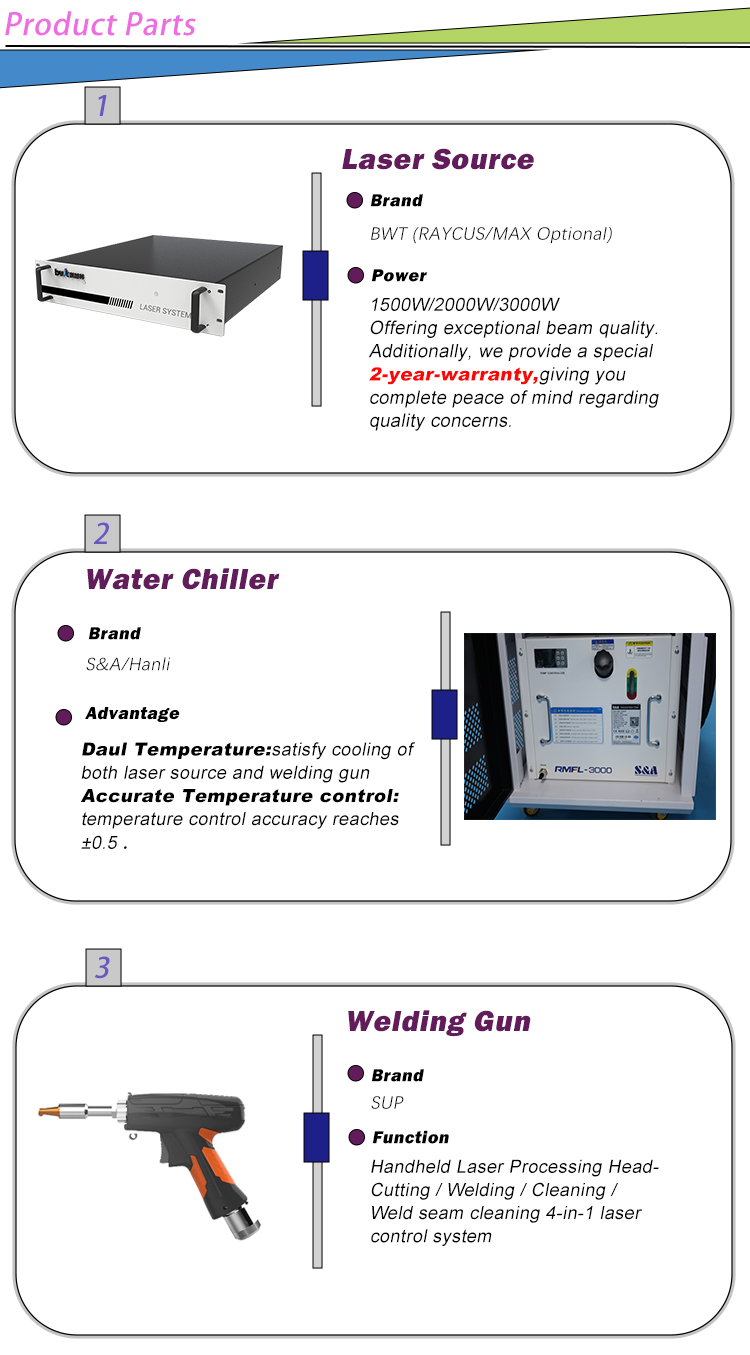

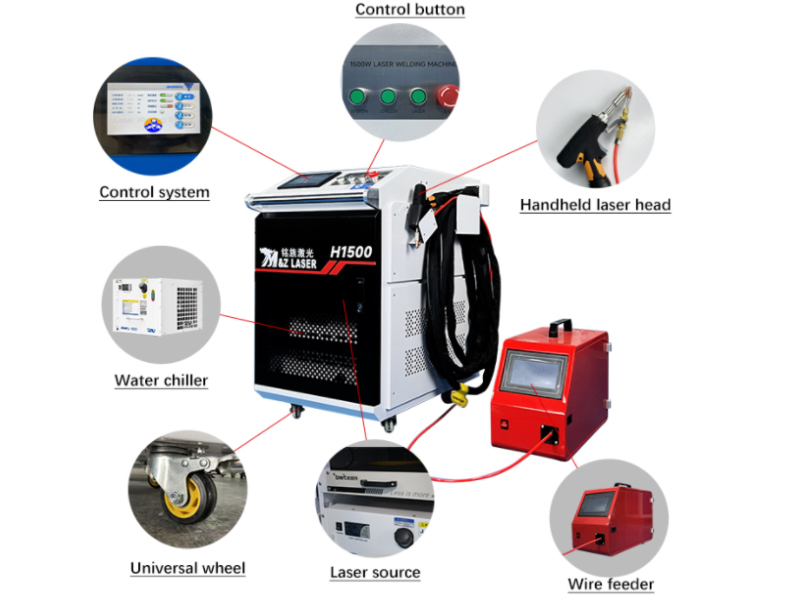

Compact Design: The integrated design combines the laser source, cooling system, and control unit into a single compact unit, saving space and enhancing portability.
-
Robust Construction: Built with high-quality materials and components, the machine is durable and reliable, capable of handling demanding industrial environments.
-
Safety Features: Equipped with safety interlocks and protective mechanisms to ensure operator safety during operation.
Specifications of handheld laser welding machine
Scanning width
|
0-6mm
|
Scanning speed
|
2-600mm/s
|
Swing mode
|
Point/line
|
Software system
|
Continuous/Spot welding
|
Laser power
|
1500W
|
Fiber length
|
10m
|
Laser Frequency
|
5Hz to 5000Hz adjustable
|
Laser power setting
|
10% to 100% adjustable
|
Laser wavelength
|
1080±10nm
|
Duty cycle(%)
|
0-100
|

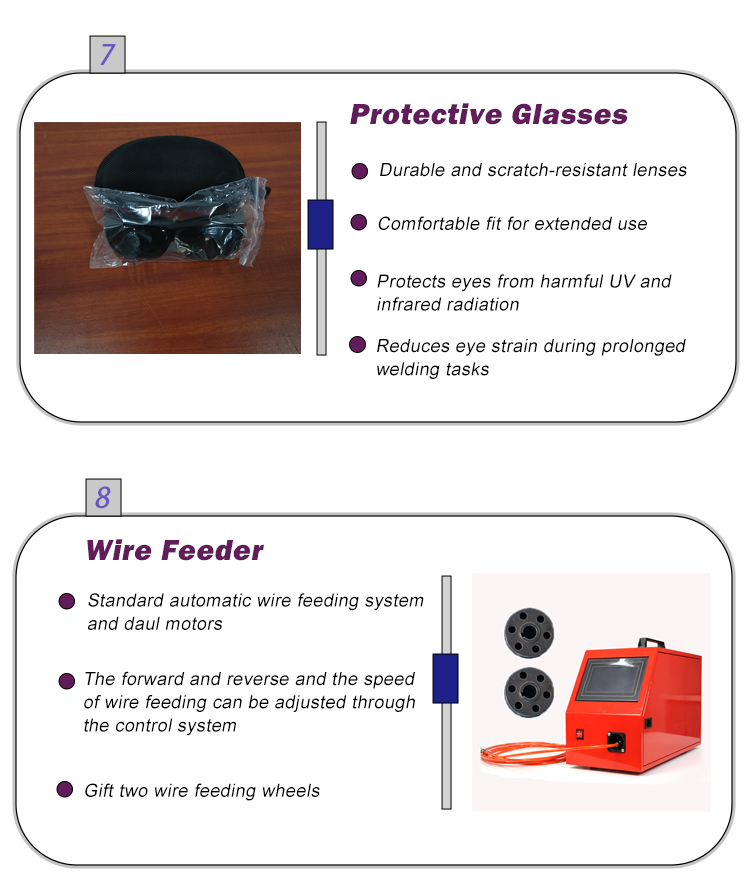

Wire feeder
|
Single wire feeder
|
Wire feed speed
|
1-120cm/min
|
|
|
Wire diameter
|
Φ0.8,Φ1.0,Φ1.2,Φ1.6
|
Language
|
Chinese, English, Korean, Russian, Japanese, German, French, Italian, Spanish, Portuguese, Turkish, Greek, Czech, Slovak, Polish, Thai, Vietnamese, Romanian
|
Cooling method
|
water-cooling
|
Protective gas
|

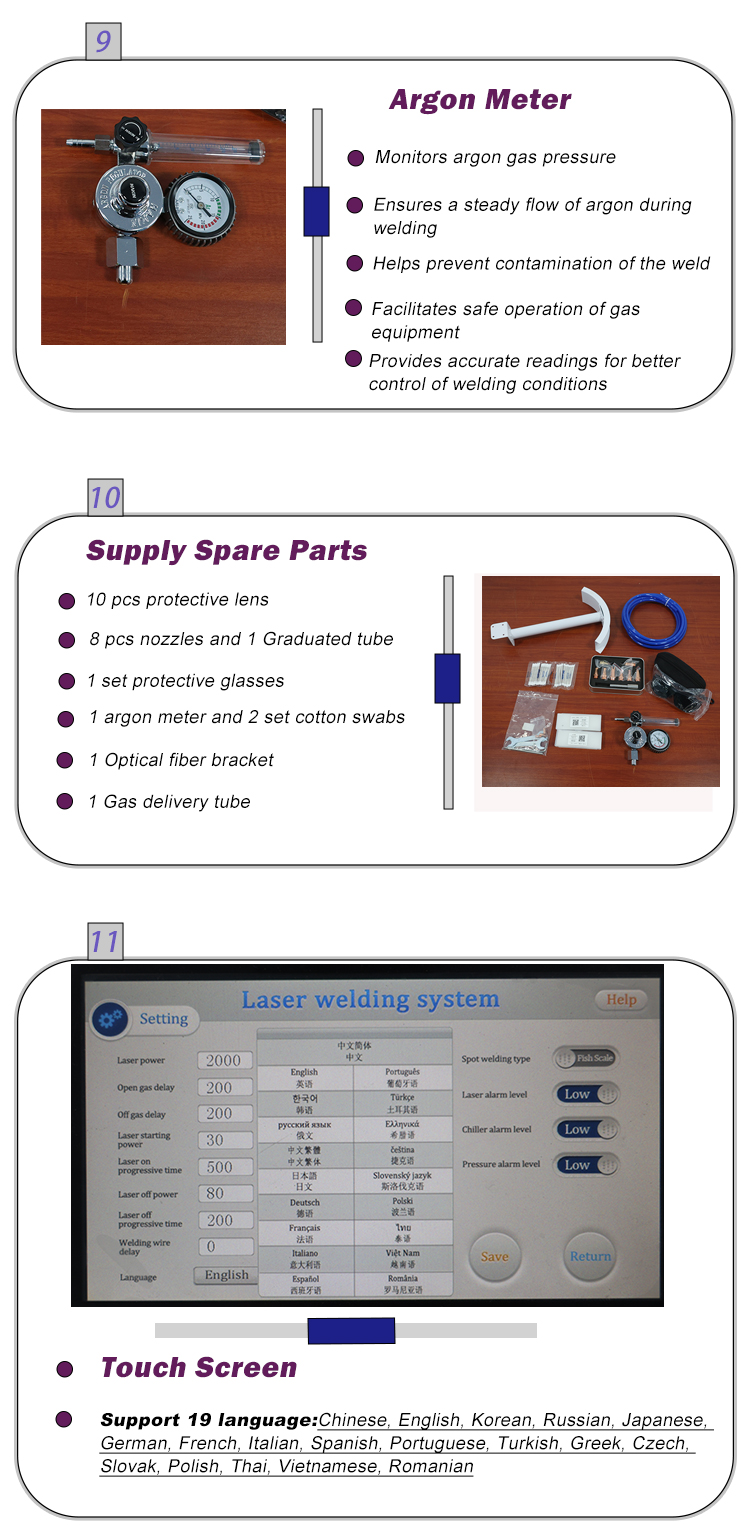

Argon
|
Power Supply
|
220V, 50Hz, 40A
|
Machine power
|
6.5Kw
|
Packing
|
Plywood case with export standard
|
Manual
|
English
|

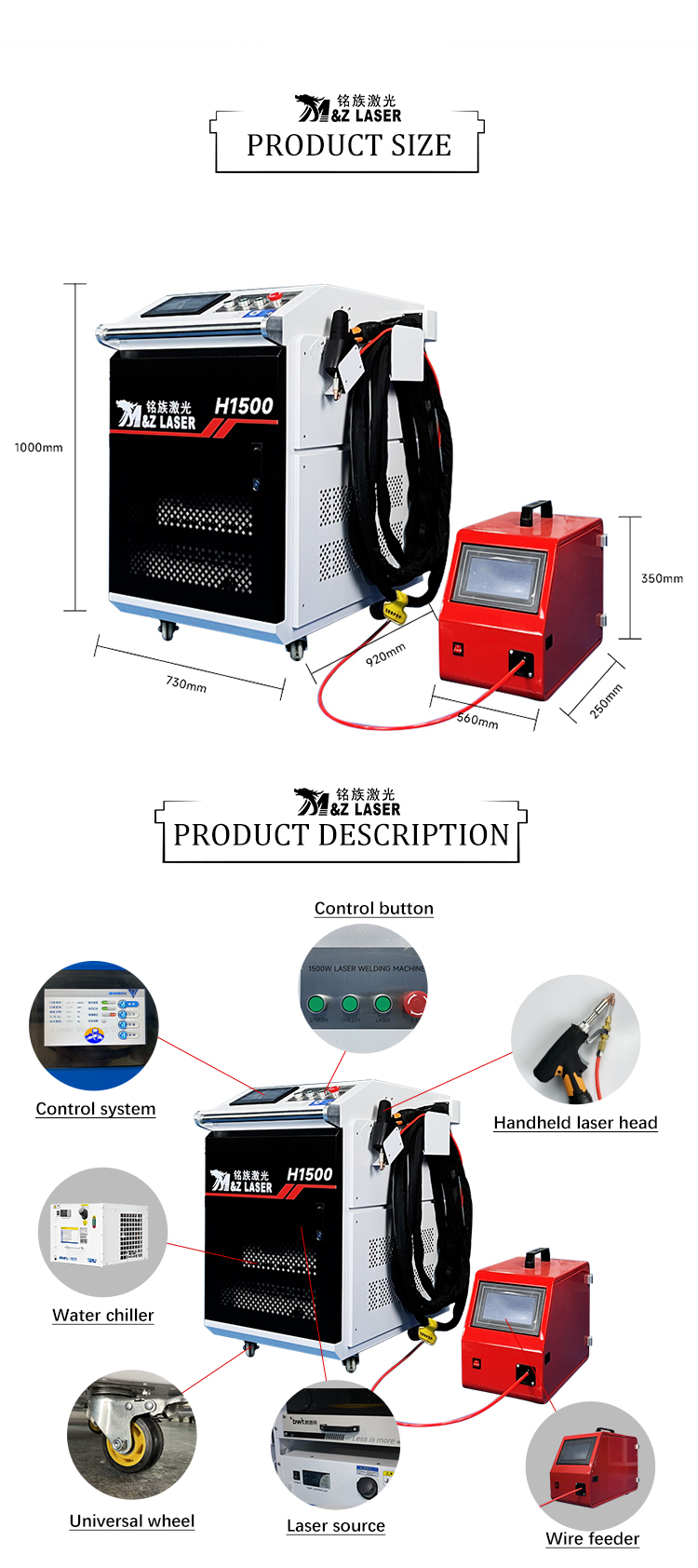

Packing size
|
Machine size:70cm*90cm*105cm
|
G. N. Weight H.
|
180kg
|
|
88cm*110cm*150cm
|
Gross weight
|
210kg
|
Power line length
|
6m
|
Safety protection
|
Safety ground
|
Maximum penetration
|
Carbon steel
|
3mm
|
|
|
Stainless steel
|
3mm
|
|
|
Aluminum
|
2.5mm
|
|

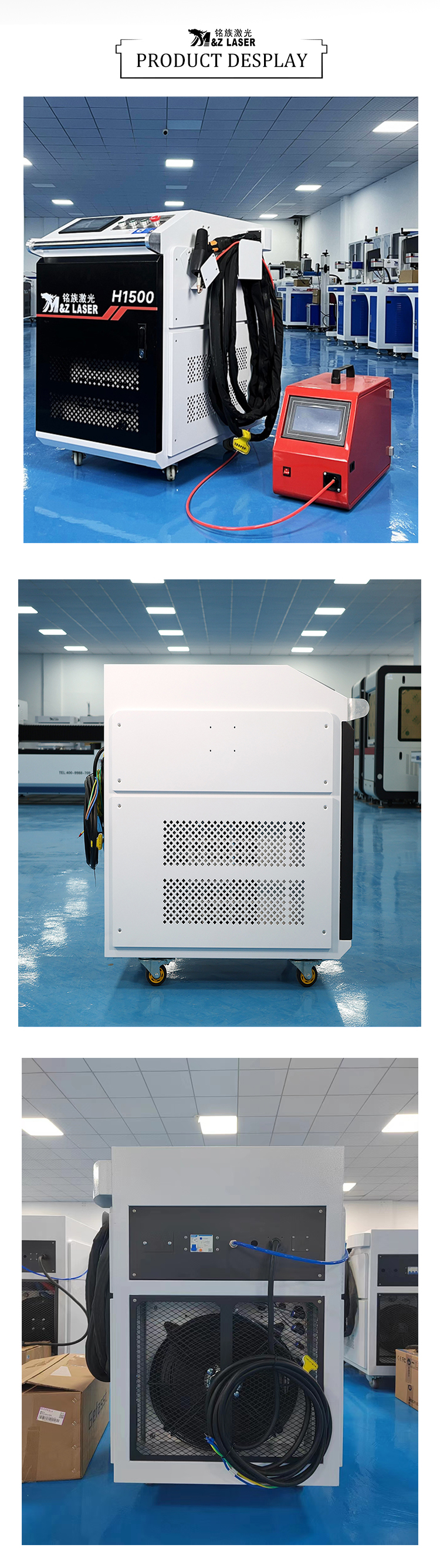

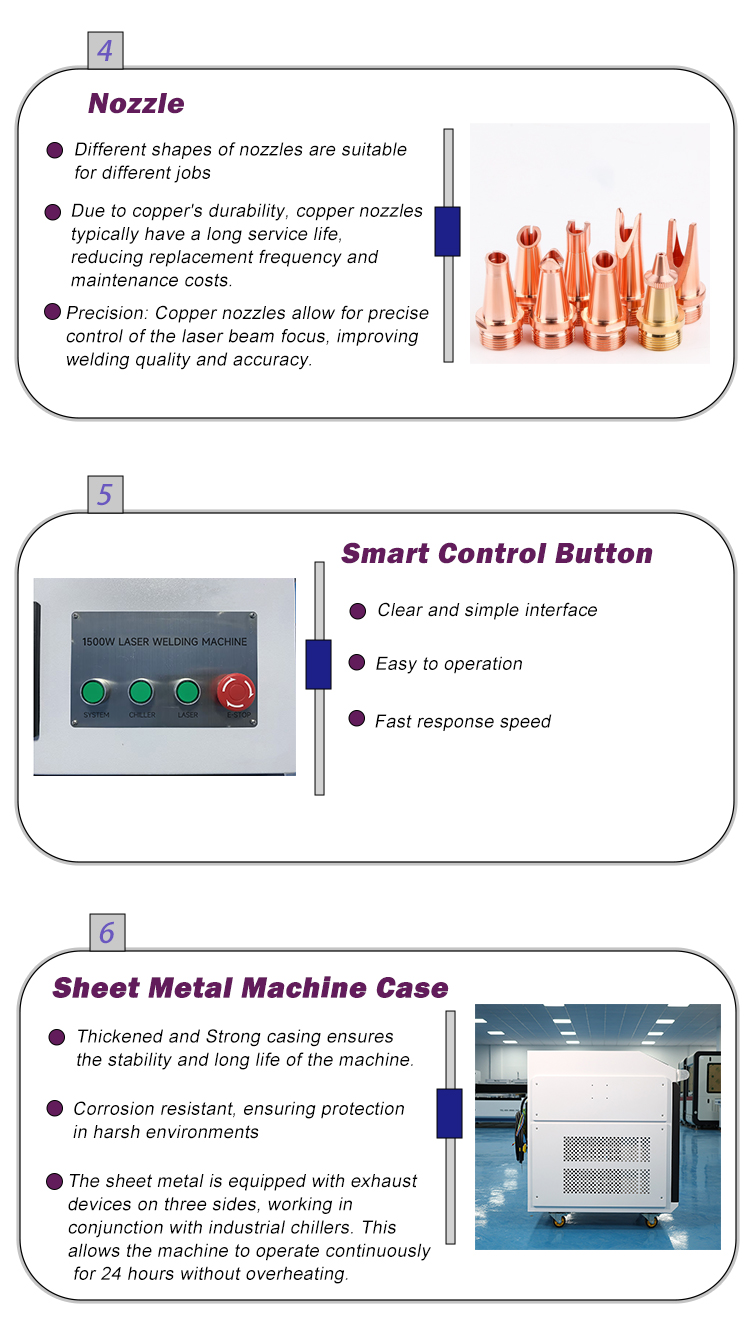

Details of 1500W handheld laser welding cutting cleaning machine 4 in 1
Original Source: MINGZU LASER TECH
