Vehicle Chassis Numbers Punching With Portable Dot Peen Marking Machine
- Product name: VIN chassis number portable punching engraving machine
- Function: Logo letter numbers punching engraving onto Vehicle chassis or engine numbers
- Graphic Format Supported: DXF,DWG, PLT, SLG, WMF, EMF, AI
- Marking surface: Flat surface & curved surface (height difference within 3mm)
- Product description: automatic portable dot peen engraving machine for chassis number punching
How to punch chassis numbers on metals?
- 1.Input the chassis numbers and then choose the fonts in our marking software, then set its height and length
- 2. Then located automatically the marking position,just click the marking position in the software, then the marking head will move to the start area of marking.
- 3. Place in the right engraving area, the just press the start button on machine head, it will go to punch chassis numbers automatically
Description:
The Hot sale dot peen marking machine chassis number stamping tool `s marking header is small, and it is of light weight, printing full-featured, easy to carry out, suitable for marking the materials outside.
Applications
This Hot sale dot peen marking machine chassis number stamping tool is widely applied to many industries, such as nameplates, framework, engine number and the surface of large parts, suitable for Car-refitting Factory, truck service station, radiator, front axle, wheels and other factory.

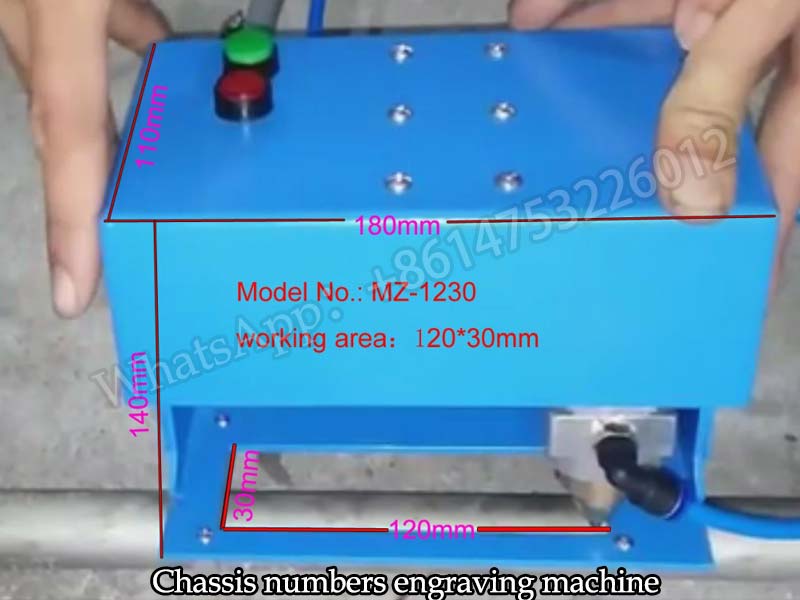

Chassis number engraving machine picture
Technical Parameters:
|
Type of Machine |
Hot sale dot peen marking machine chassis number stamping tool |
|
Product model |
MZ-1230/1640/1690 |
|
Marking Range |
120mm×30mm/ 160*40mm 160mm×90mm |
|
Pressure |
0.3—0.7MPa |
|
Power |
<150W |
|
Power Supply |
220V |
|
Marking Depth |
0.01—2mm(depend on the material) |
|
Working Temperature |
-10°--40° |
|
Marking Speed |
5—120 character /min |
|
Marking Dontents |
Numbers, English characters, common symbols, characters, PLT graphics, etc. |

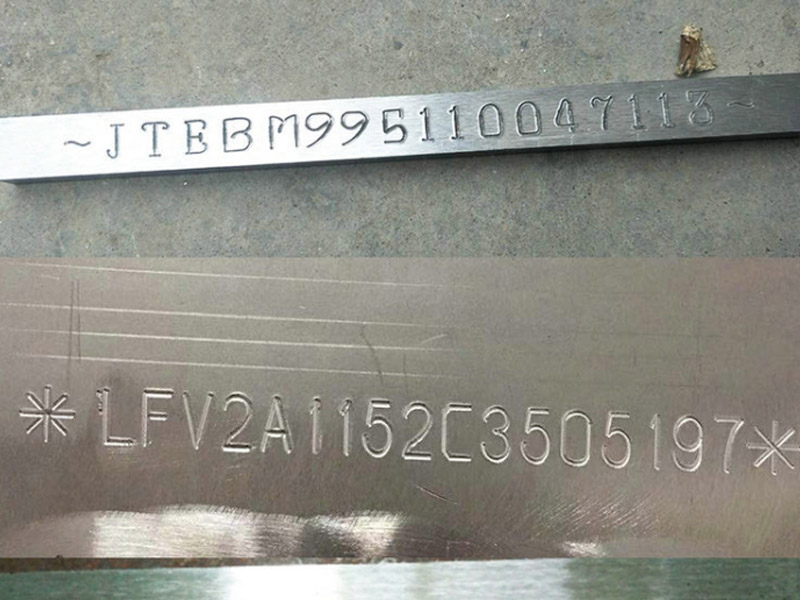

Marking Samples:
System Standard Configuration
|
Number |
Name |
Main Configuration |
Quantity |
Remarks |
|
1 |
control cabinet |
subdividing drive |
1 |
M432 |
|
Mingzu Photoelectric control board |
||||
|
Power Supply |
||||
|
2 |
Marking Head |
PE linear guide |
1 |
120×30mm 160×40mm 160*90mm |
|
cog belt |
||||
|
electromagnetic valve |
||||
|
stepper motor |
||||
|
3 |
Cable |
19-core cable |
1 |
3meter |
|
telecommunication cables |
1 |
1.5 meter |
||
|
4 |
Desk tool |
Lifting height:500mm |
1 |
|
Our after- sale service:
We have one year guarantee for the Hot sale dot peen marking machine chassis number stamping tool and 3 months guarantee for consumables. We will provide an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.
Competitive Advantage:
1. Fine marking effect with fast speed and high precision
2. Can be equiped with special workpiece fixture to achieve fast clamping
3. Controlled by single chip microcomputer or industial computer
4. Full of marking functions and cost-effective for you
5. Good service and proven technology , you can rest assured to buy it!
Hot sale dot peen marking machine chassis number stamping tool
