For pipe industry,cable industry or packing industry, they all need date coding printing machine for their product, now we introduce you our flying laser printing machine to you for the date code, expiry date printing.Our machine works very stable and high speed,while working without any consumables. so it is very cost-effective for your production.You can use our flying laser prinitng machine for date code,expiry code,bar code, QR, logos and series numbers, and bactch numbers printing. ...
Product Descriptions
Flying fiber Laser date code printing machine for expiry date
Fiber Laser Marking Machine is widely used in LOGO marking of electronic products, Food, PVC, medical packaging materials (HDPE, PO, PP, etc.) marking and drilling (d≤10μm), Flexible PCB board marking and slicing, Metal or non-metallic coating removing and Wafer.

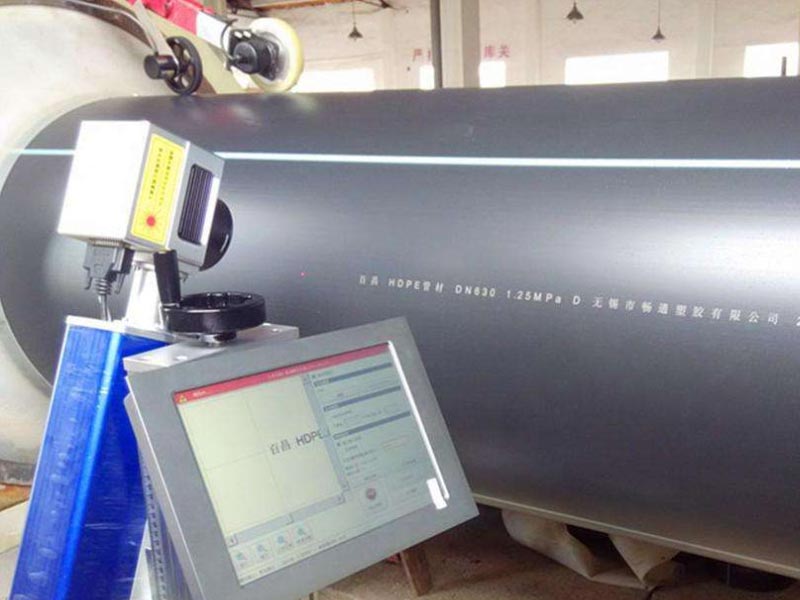

For hdpe pvc pipe manufacturer and cable manufacturer, they all need printing the date code, or their brand on the pipe or cable, The traditional way is to use ink jet printer to print, but ink jet printer consumption waste too much, and high consumable price, high maintenance and use costs, and chemical ink is not enough environmental protection, so now is being replaced by laser jet printer.

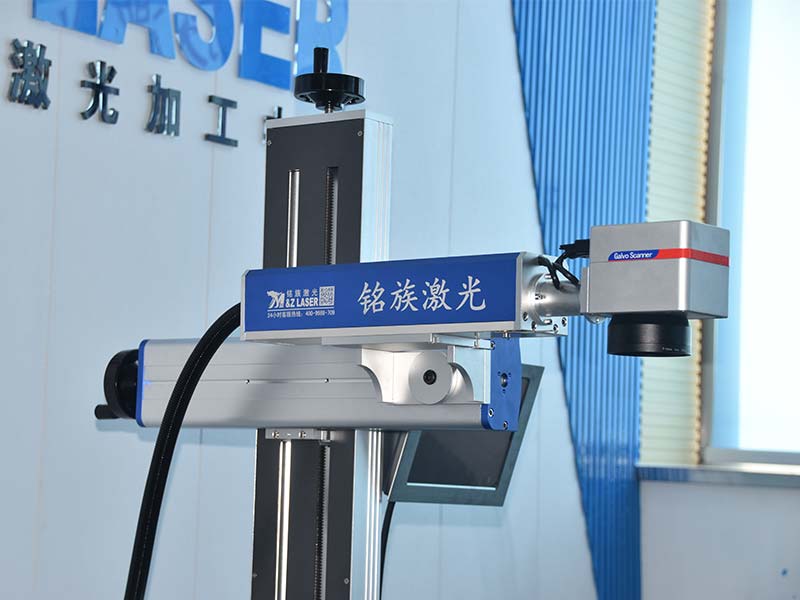

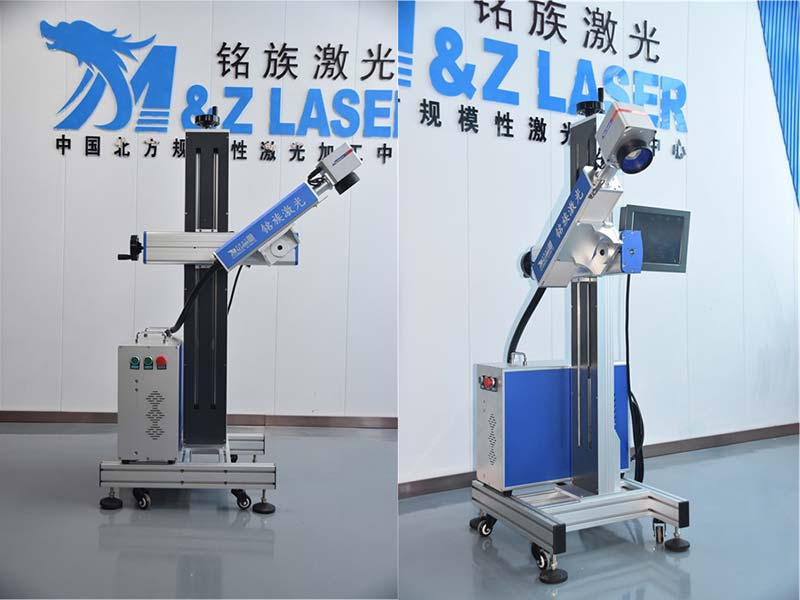

Flying fiber Laser date code printing machine for expiry date picture
Advantage of Laser date code printing machine for expiry date
1, High marking speed, efficiency and precision
2, No consumable component, low cost and maintenance costs
3, High beam quality, small facular, can realize ultra-fine marking
4, Small heat-affected zone, avoids damage to work pieces, high yield
5. Long life span and no consumable and no need maintenance

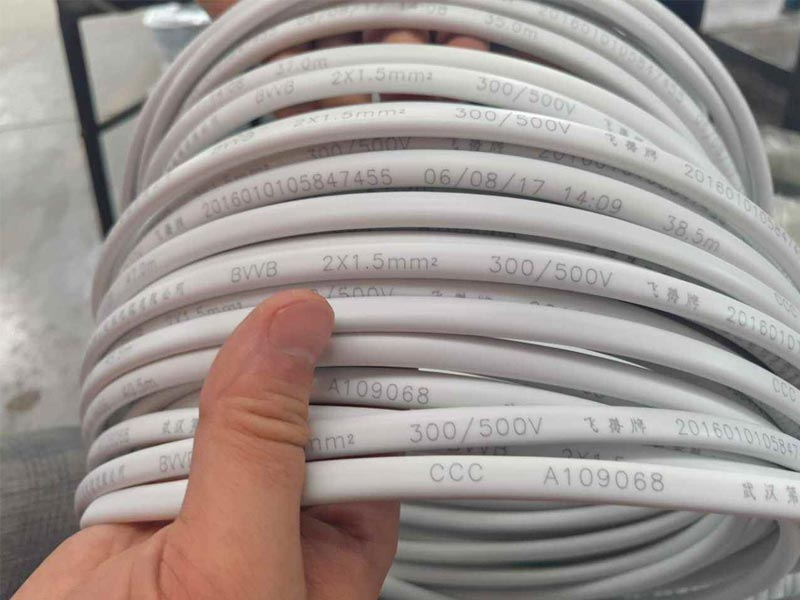

Cable fiber laser printing machine parameters
Product model
|
MZ-FM20F
|
MZ-FM30 50F
|
Type of machine
|
Flying fiber Laser date code printing machine for expiry date
|
Laser Wavelength
|
1064nm
|
laser power
|
20W
|
30W 50W
|
scanning speed
|
15000mm/s
|
Marking Range:
|
110mm×110mm
|
Repetition Precision
|
±0.002
|
Marking mode
|
static or dynamic
|
Spot diameter
|
0.025mm
|

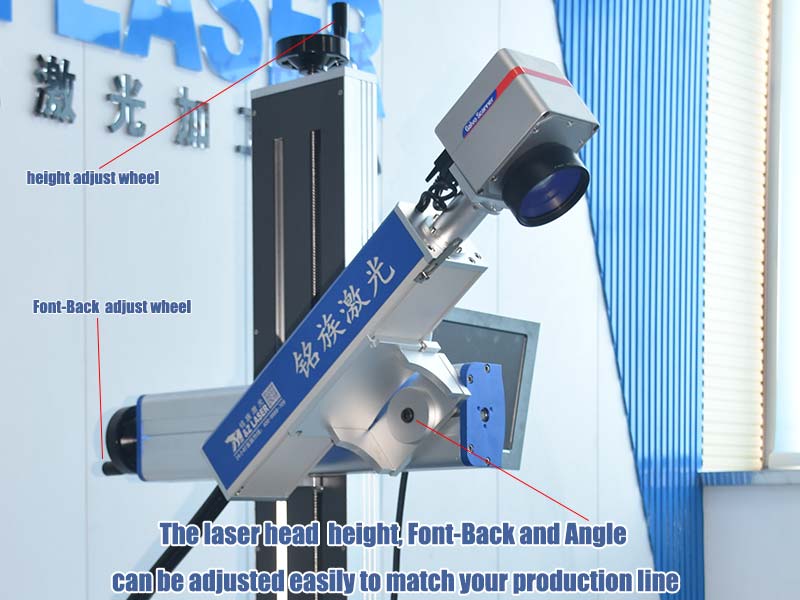

Lifting way of working
table
|
Manual or automatic
|
Lifting height
|
500mm
|
Travel of table
|
X:150mm Y: 90mm
|
Machine power supply
|
220V 50Hz 20A
|
Cooling method
|
forced-air cooling
|
Power of the Whole Equipment
|
<0.6KW
|
working conditions
|
temperature:13°C~29°C humidity:5%~75% free of dust and well ventilated
|
Overall dimension
|
760×720×750mm
|
Machine weight
|
70Kg
|

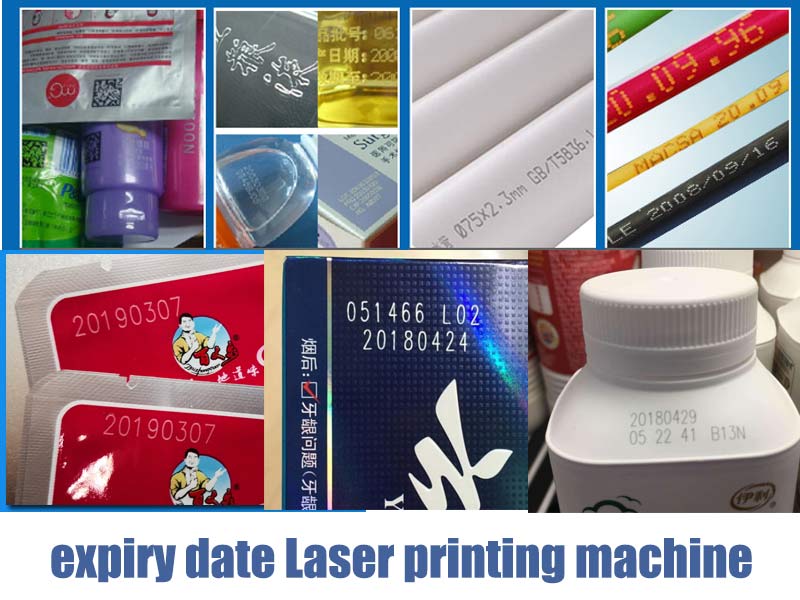

Expiry date laser printing samples
