Product Descriptions

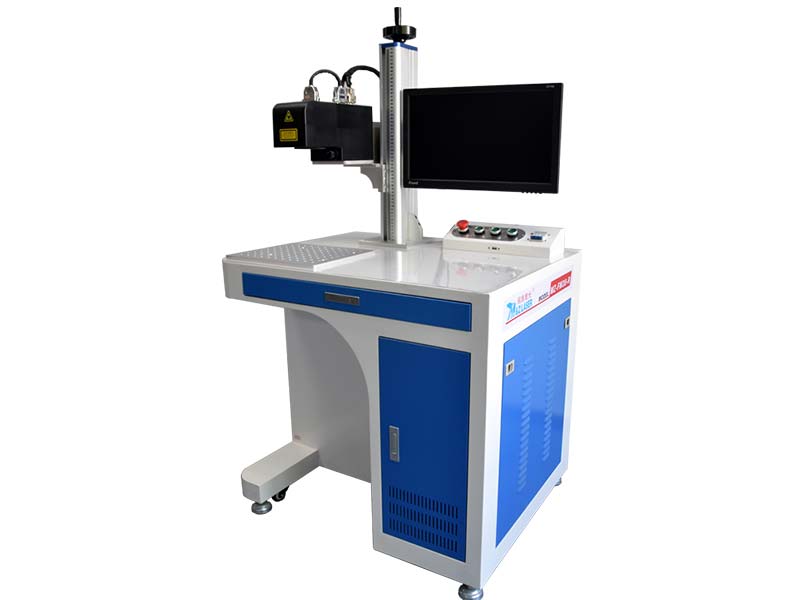

50W 100 watts 3D Fiber Laser Metal Engraving Machine

3D fiber laser marking machine is also named 3d fiber laser metal engraving machine,it can do 3d model engraving on all metal materials.For 3D laser metal engraving, had better choose our high laser power,50 watts is the beginning level for deep engraving, if your 3d model is very deep, had better choose higher laser power such as 70W 80W, 100 watts or even 150 watts. Becuase the higher laser power, the faster engraving on same depth.

For the traditional 2D laser marking mode, the laser engraving surface must be at same height, so that laser can work engraving on it. But for 3D fiber laser metal engraving machine, it can achieve engravings on metals with around 120mm height difference in one time without changing the laser head hegith by manual.Even for the curve surface engraving or slope surface printing,3d fiber laser is also no problem to do marking printing in one time and the engraving text or logos are in good shape without transformation, very convenient for many 3D metal parts engaving, decreased the steps of processing and improve your working efficiency.

Now many buyers choose our 3d fiber laser marking machine 50 watts for some irregular curve surface printing or marking on their metal products, it is very difficult for traditional 2d laser marking machine. For some cylinder product with a certain radian can be marked at one time, 3d fiber laser engraving machine is very useful.

Also have many customers are interested in our 3d fiber laser metal engraving machine, they used our 3d fiber laser marking machine 50 watts or 100 watts for their 3d coin mould engraving, because of 3d fiber laser is with high precision and it can do very tinny small details engraving that cnc engraving machine can't do.

The advantage of 3d fiber laser metal engraving machine

1. Larger working area, for standard 3d fiber laser, its working area can be 200*200mm, while 2d working range is 110*110mm
2. In such big working range, the laser spot size is much smaller than 2d type
3. Faster scanning speed with higher repeat precision.
4. can do deep engraving on metal more faster than 2d type

Specifications of 3d fiber laser metal engraving machine

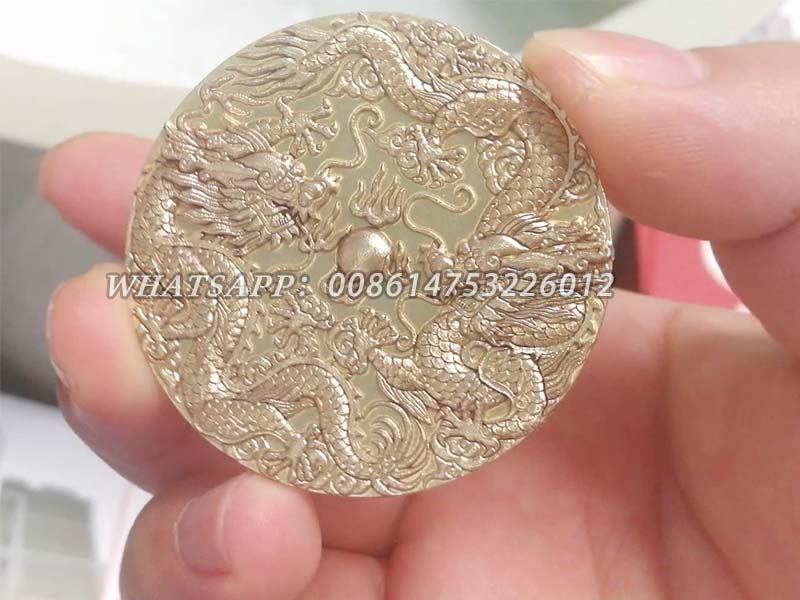

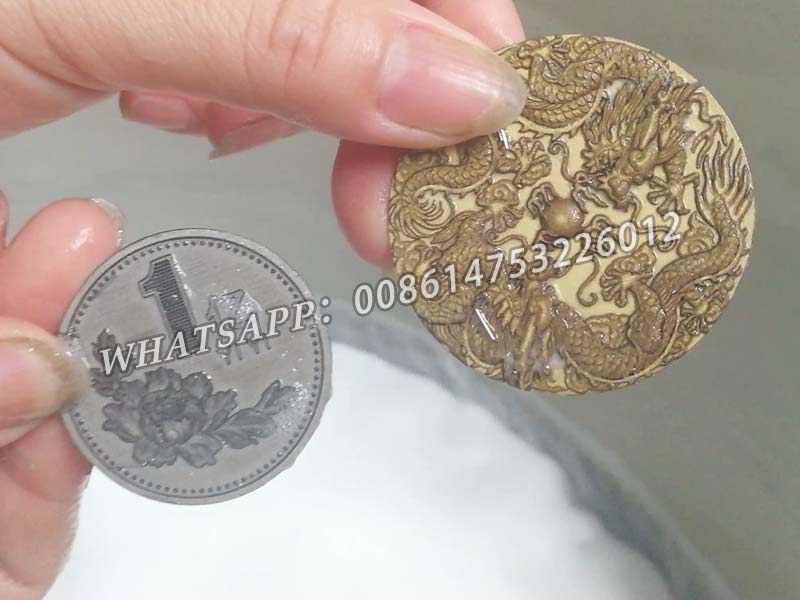

3D Laser metal engraving samples made by our 50 watts 3d fiber laser engraving machine
