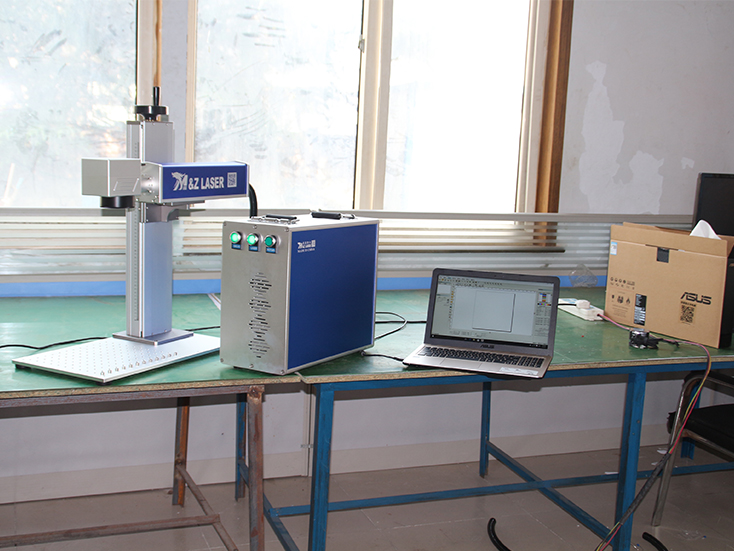

Many factories are looking for a best logo printing machine on their plastic product,today we will introduce our fiber laser marking machine 30w for logo printing on plastic. It is a best laser engraver for metal and plastic engraving,now widely applied to plastic product permanent printing and etching,no need any consumables and maintenance,long life working span.Of course, it also can be customized to install on your production line and work with your present control system together to improve your working efficiency. ...

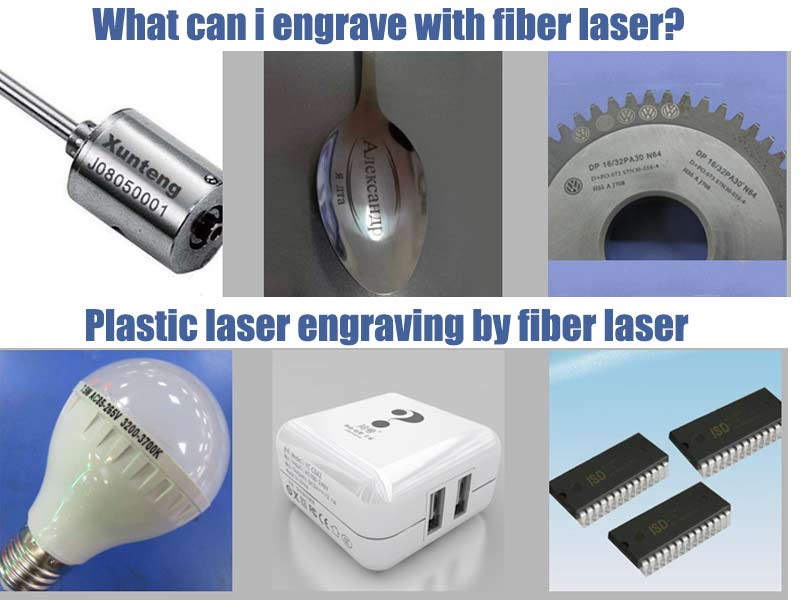

Fiber laser marking machine is a best laser engraver for metal and plastic,it is widely used for metals and plastic permanent printing and etching. This page is mainly showing you laser etching printing on plastic product surface...
Competitive Advantage:
Specifications:
|
Product model |
MZ-FMS20 |
MZ-FMS20 30 50 |
|
Type of machine |
Fiber laser marking machine for series number logo printing on plastic |
|
|
Laser Wavelength |
1064nm |
|
|
laser power |
20W |
30W 50W |
|
Modulating frequency |
20KHz—100KHz |
|
|
Marking Range: |
110mm×110mm 175mm×175mm 210mm×210mm |
|
|
Repetition Precision |
±0.001 |
|
|
Marking mode |
static or dynamic |
|
|
Spot diameter |
0.025mm |
|
|
Lifting way of working table |
Manual or automatic |
|
|
Lifting height |
500mm |
|
|
Travel of table |
X:150mm Y: 90mm |
|
|
Machine power supply |
220V 50Hz 20A |
|
|
Cooling method |
forced-air cooling |
|
|
Power of the Whole Equipment |
<0.5KW |
|
|
working conditions |
temperature:13°C~29°C, humidity:5%~75%, free of dust and well ventilated |
|
|
Overall dimension |
760×720×750mm |
|
|
Machine weight |
60Kg |
|
